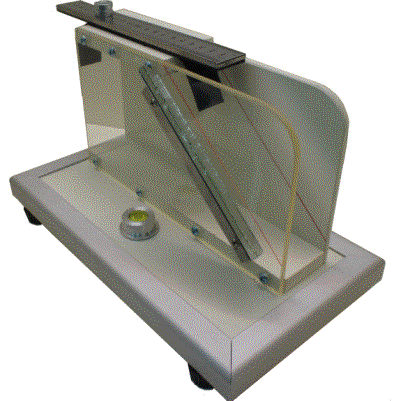

L10#織物硬挺測試儀 |
|
|
|
L10# FABRIC STIFFNESS TESTER |
|
|
|
|
|
|
|
|
|
 |
|
|
|
訂價 = HKD 1,800.-/台set
Price
|
|
|
|
|
|
本儀器用於測試布料之硬挺度 ; |
|
|
適合各種織物, 無縫布, 塗層布, |
|
|
紙張,皮革,或膠膜等材質使用!! |
|
|
It can read the
bending height or |
|
|
flexural rigidity
of Fabrics, and it |
|
|
is good for Leather,Paper,Blankets, |
|
|
or plastic films
to use also!! |
|
|
|
|
|
|
規格 Specifications : |
|
|
機身呎碼: 28 x 15 x 17cm |
|
|
Body size |
|
|
凈重: 1.6kg |
|
|
|
Net Weight
|
|
|
|
|
方法 Test method : |
|
|
1)裁出試樣250x25mm, 縱
/ 橫紋各5塊; |
|
|
2)調校儀器至水平;
放下試樣於上方滑道上, |
|
|
放下壓尺於試樣上, 兩者前端必需對齊; |
|
|
3)推進壓尺,
試樣會因應自身之重量而下垂; |
|
|
當觸及檢測線時, 記錄壓尺讀數; |
|
|
4)將 縱 / 橫紋 每片試樣之 底 / 面 各記錄 1次, |
|
|
當完成各10次之後, 便可得出各自平均值 !! |
|
|
|
1)cut out the specimen in
sizes 250x25mm,Vertical / Horizontal per 5pcs each, |
|
|
2)adjust the Tester in
horizontal; place the specimen on between the runway and the gauge, |
|
|
align the gauge with the end of
the spaceimen, |
|
|
3)push
the gauge out of the runway in slowly, the specimen will bend under its own
mass. |
|
|
Once it is enough to touch the bend
angle indicator, then the length of the overhang is measured. |
|
|
4)Vertical / Horizontal
be separated to do, and both faces of specimen be done, total = 10 times x
2(=10V+10H), |
|
|
then it can calculate the
average value per each !! |
|
|
|
|
|
