| K1-111# 特大分色箱
(美制式) |
|
|

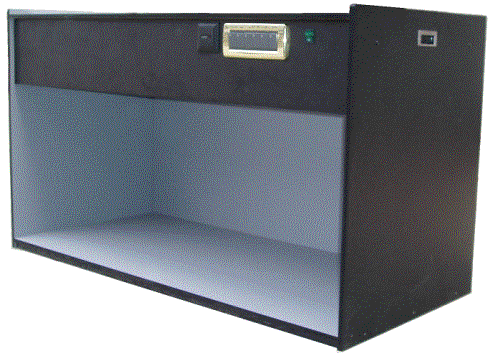

| KING SIZES, COLOUR
ASSESSMENT CABINET (US. Standard) |
|
|
|
|
| 適合廣告, 印刷, 漂染, 成衣及化驗室 等各行業; 用於為它們之產品進行比色, 配色, 或鑑評色澤標準, |
|
| 以確保在不同標準之光源及同環境下, 都能與客戶之樣辦或所要求, 達至相同及予以配合. |
|
|
|
| Used for Advertising / Printing / Dying /
Garment industries and laboratories process colour matching or assessment
frequently |
|
| for their products
to verify the colour standards in order to coincide with samples or
requirements laid by their customers. |
|
|
|
|
| 錶板詳細
/ Description for Selector Panel: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HORIZON |
D65 |
A |
|
CWF |
UV |
TL-84 |
|
|
|
|
|
| |
|
|
|
|
Power |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
總開關 |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
**所有按鍵左上方都配有指示燈號!** |
|
|
|
|
|
|
**All as above buttons had built with LED!** |
|
|
|
|
|
|
|
|
|
|
|
| 配有光源
/ The Light Sources with : |
|
|
|
|
|
|
|
|
|
|
|
|
|
HORIZON |
: |
水平日光 HORIZON (2300Kx4pcs) |
|
|
|
|
|
D65 |
: |
日光 Daylight (6500Kx2pcs) |
|
|
|
|
|
A |
: |
射燈 INC"A"
(2856Kx2pcs) |
|
|
|
|
|
|
|
CWF |
: |
泠白光 Cool White
(4150Kx2pcs) |
|
|
|
|
|
|
|
UV |
: |
紫外光 Uitraviolet (x2pcs) |
|
|
|
|
|
|
|
|
TL-84 |
: |
廚窗光 Windowlight
(4000Kx2pcs) |
|
|
|
|
|
|
|
**另有
TL83,UL3000,U30等光管,以供選購! |
|
|
|
|
|
|
|
|
| 適用於Suitable
for: |
|
|
|
|
|
|
|
| ISO 3664, DIN, ANSI, BSI &
AATCC. |
|
|
|
| 規格/Specification: |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 電壓
Voltages: 220V~240V,50/60Hz |
|
|
|
| 呎碼
Diamensions: 130 x 61 x 75cm |
|
|
|
| 包裝呎碼
Packing size: 135 x 69 x 37cm |
|
|
|
訂價Price: HKD
9,500.00 / 部set |
|
| 重量
Weights: N.W. 56kg / G.W. 61kg |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 用法: |
|
|
|
|
|
|
Useing: |
|
|
|
|
|
|
|
|
|
| 利用本燈箱各種光源,檢查樣品是否有同色異譜 |
|
Have multiple light source to check for the presence
of metamerism |
|
| (
即該顏色在同一種光源下為相配, 但在另一光 |
|
(colour appears to match under one light source , but is distinctly |
|
| 源下卻有差異), 當試過不同光源後,
而結果得出 |
|
different
under another). By eliminate metamerism, you'll maintain |
|
| 同一色譜,
該顏色便是所需要的高質量顏色! |
|
the
highest standards for the colours you select or specify. |
|
|
|
|
|
|
|
|
|
|
| 備註:所有燈管使用1,500
小時後需要更換! |
|
|
Note:The lights be changed if after used 1,500
hours! |
|
|
|
