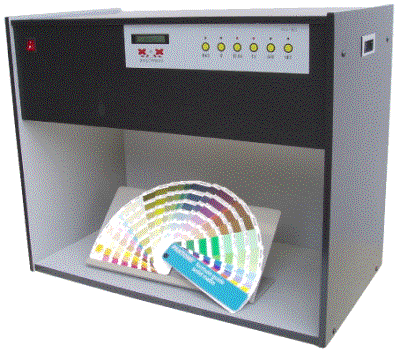

| K1#分色箱(歐制式) |
| COLOUR ASSESSMENT
CABINET(EU. Standard) |
|
| 適合廣告, 印刷, 漂染, 成衣及化驗室 等各行業; 用於為它們之產品進行比色, 配色, 或鑑評色澤標準, |
| 以確保在不同標準之光源及同環境下, 都能與客戶之樣辦或所要求, 達至相同及予以配合. |
|
| Used for Advertising / Printing / Dying /
Garment industries and laboratories process colour matching or assessment
frequently |
| for their products
to verify the colour standards in order to coincide with samples or
requirements laid by their customers. |
|
| 錶板詳細 / Description
for Selector Panel: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power |
|
Timer Display |
|
|
|
總開關 |
|
計時屏 |
|
|
|
D65 |
F TL84 UV |
OFF SET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
**所有按鍵上方都配有指示燈號!** |
|
|
|
**All as above buttons had built with LED!** |
|
|
| 配有光源 / The Light
Sources with : |
|
|
|
|
|
|
D65 |
: |
日光 Daylight (6500Kx2pcs) |
|
|
F |
: |
室光 Roomlight(2300-2800Kx2pcs) |
|
|
TL84 |
: |
廚窗光 Windowlight (4000Kx2pcs) |
|
|
UV |
: |
紫外光 Uitraviolet (x1pc) |
|
|
|
|
|
|
**另有
TL83,U3000,U30等光管,以供選購! |
|
|
|
|
| 適用於Suitable for: |
|
|
|
| ASTM D1729,BS950
Part 1,DIN & ANSI. |
|
|
|
| 規格/Specification: |
|
|
|
|
| 電壓 Voltages: 220V~240V,50/60Hz |
|
| 呎碼 Diamensions: 70
x 39 x 57cm |
|
|
訂價Price: HKD 3,000.00 / 部set |
|
| 包裝呎碼 Packing size: 76 x 45 x 64cm |
|
| 重量 Weights: N.W. 20kg / G.W. 21kg |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 用法: |
|
|
|
|
|
|
Useing: |
|
|
|
|
|
|
|
|
|
|
| 利用本燈箱各種光源,檢查樣品是否有同色異譜 |
Have multiple light source to check for the presence
of metamerism |
| (
即該顏色在同一種光源下為相配, 但在另一光 |
(colour appears to match under one light source , but is distinctly |
| 源下卻有差異), 當試過不同光源後,
而結果得出 |
different
under another). By eliminate metamerism, you'll maintain |
| 同一色譜,
該顏色便是所需要的高質量顏色! |
the
highest standards for the colours you select or specify. |
|
|
| 備註:所有燈管使用1,500
小時後需要更換! |
|
Note:The lights be changed if after used 1,500
hours! |
|
