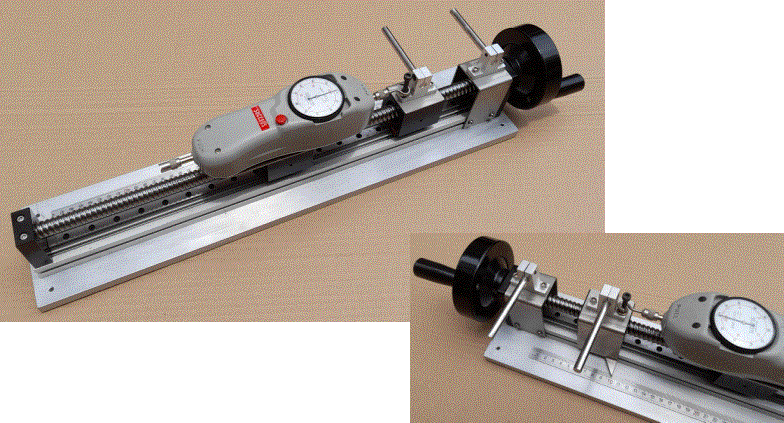

| L17# 領口張力測試儀 |
|
| NECK TENSION TESTER |
|
| 本儀器主要用於 羊毛, 針織 或 其它 彈性衣衫, 用於測試圓領之領圍, 能否達到要求闊度 kg/cm !! |
|
| This
Tester is designed for Wool, Knitting or other Elastic clothes, it is used to
test the neck circumference, to reach the required width at kg/cm!! |
|
|
| 測試方法: |
|
|
|
|
|
|
|
|
| [1] 將領口套進2支撐柱上, 攪動手柄, 直至 "拉力表" |
[2] 紀錄讀尺上之長度 (cm), 並跟客戶要求作出比對, |
|
| 之指針至3kg位置; |
|
可以接受範圍為±3%,
太多或太少都定為未達標!! |
|
|
|
| 參考資料:- |
|
|
| 一般領口全圍, 成人= 52~62cm, 童庄 = 45~60cm,但最終都按客戶要求為準!! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L17# 訂價 price=HKD 3,800.-/套 set |
|
|
|
|
|
|
|
|
|
|
|
| Test
Direction |
|
機身呎碼 overall size = 65x13x14cmH |
|
|
| [1]
Put the neck on the two of Bars, and rotate the handle |
凈重 net weight = 5.7kg |
|
| until the read out
of the "tension meter" in 3kg; |
|
|
|
| [2]
Record the length (cm) of the ruler's read out, and |
|
For Reference |
|
| compare
with the customer's requirements. |
|
|
General
neck circumference, adult = 52~62cm, |
|
| The
acceptable range is ±3%, too much or too little |
|
children = 45~60cm,
but in the end it all depends |
|
| is
considered not up to standard!! |
|
on the customer's request!! |
|
|
|
|
|
