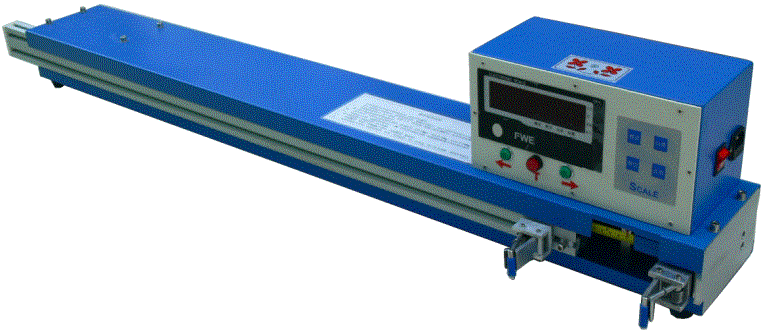

L7# 毛衫織片測長機
WOOLEN FABRIC CRIMP TESTING MACHINE
針對 毛衫廠"辨房"而設計; 男女均可, 簡單易用 ! 並可提升生產素質 !!
Designed for Sample room of Woolen fabric, easy control and good for up-grade production planning!
用於測試"毛衫織片", 於設定同一長度下, 能否達到所需伸展之長度, 以便於起辨過程中,
準確地計算加減針數, 以減除過往以人手拉扯, 因個人體力不同而做成之誤差!
Provided a stable force to read out the crimp in yarn affected by knitting or weaving by taking apart the yarn
from a piece of given-length fabric,to determine actual yarn usage.It is better then by hand to pull !!
夾具闊度:-25mm
Clamps width
夾具之間距離:-100mm
Clamp to clamp
拉伸範圍:-100~1000mm
Stretch range
拉伸力度:- 0~99Kg
Force range
可顯示值:- Kg, g, Lb, oz
Unit
訂價 = HKD 7,500.-/台set
Price
電壓:- 220V AC
Voltage
機身呎碼:- 126 x 17 x 27cm
Body size
凈重:- 23kg * 適用於 FZ / T 70008 標準 !!
Net weight Suitable for FZ/T70008 standard !!
