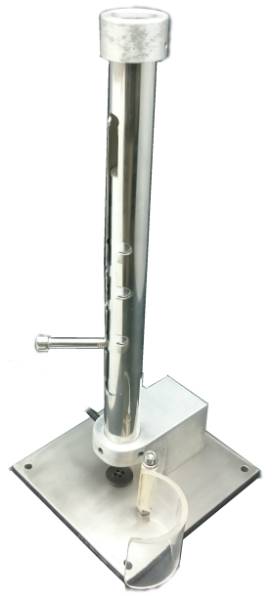

| L8# 鈕扣撞擊強力測試儀 |
|
| L8# BUTTON IMPACT
TESTER |
|
|
|
| 本機
用於 檢測各種塑料鈕扣的"抗撞擊力"!! "墜物"質量設定為標準 0.84kg (29.5oz), |
|
|
| 從67mm
(2-5/8") 高度自然落下, 冲撞鈕扣; 或 可跟據客戶所選擇之高度作出冲擊, |
|
| 分別有:- |
|
|
| 32mm
(1-1/4"), 44mm (1-3/4"), 67mm (2-5/8"), 83mm (3-1/4"),
95mm (3-3/4"), |
|
| 117mm (4-5/8"), 及
200mm (8") 等 |
|
|
|
|
|
|
|
|
 |
|
|
|
HKD1,800.-/台unit
|
|
|
| 以紀錄該
鈕扣 的破裂程度作為考核 !! |
|
| 適用於
ASTM D5171# 標準!! |
|
|
|
| It
is used to determine the impact resistance of plastic sew-through flange
buttons. Standard |
|
| impact
ram of 0.84kg (29.5oz) is dropped from a height of 67mm (2-5/8") |
|
| or other six
predetermined height as required, |
|
| Height
available:- |
|
|
| 32mm
(1-1/4"), 44mm (1-3/4"), 67mm (2-5/8"), 83mm
(3-1/4"), |
|
| 95mm
(3-3/4"), 117mm (4-5/8"), & 200mm (8") |
|
|
|
|
| It
is used to record the extent of damage as the button !! |
|
| Suitable
for ASTM D5171# Standards!! |
|
|
|
| 用法:- |
|
| 1) 將鈕扣置於"墜物"下方, 對準平台上落點, 並蓋上安全罩; |
|
| 2) 將"墜物"移到所需高度並置妥; |
|
| 3) 移動固定桿, 使墜物自然墜下; |
|
| 4) 挪開"墜物"; |
|
| 5) 用5倍放大鏡目測, 並紀錄該鈕扣損壞狀況!! |
|
|
|
| Operation: |
|
| 1)
Place a button under the Ram on the base plate, and then close the Safety
cover, |
|
| 2)
Insert the Pin according to the height required. |
|
| 3)
Pull out the pin, the ram will fall on the button. |
|
| 4)
Remove the ram. |
|
| 5)
Record the extent of damage by 5x Magnifier!! |
|
|
|
| 規格 Specification |
|
| 呎吋 dimension |
凈重 N.W. |
|
|
|
|
| 15 x 14 x 38cmH |
3kg |
|
|
|
|
|
|
