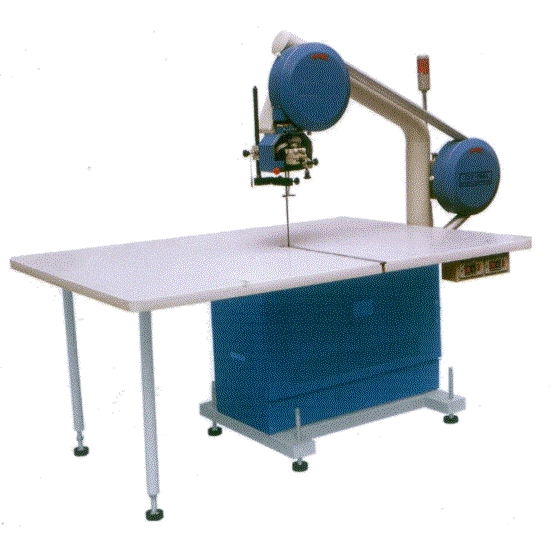

| H7#運剪形裁布機 |
|
| BAND KNIFE TYPE CUTTING MACHINE |
|
|
| 配合裁床使用, 用以輔助細裁, 檯面藏有走珠,
及內置有吹風機, 以增裁切時順暢!( 可另加電子調速器!) |
|
| Used for Cloth
cutting in Finishing Cut section. Built-in roller and blower on the bench-top
to make it easy and fast when cutting! |
|
| **( Speed controller available! ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
規格 Description |
|
| 形號 model |
H7# |
H7-1# |
|
| 檯面呎吋 bench top size |
120 |
x |
160cm |
150 |
x |
180cm |
|
| 可裁厚度 can cut thickness |
max |
= |
18cm |
max |
= |
18cm |
|
| 運剪刀至弓位闊度 blade to arm width |
70cm |
90cm |
|
| 運剪刀呎吋 blade size |
0.045 x 1 x 350cm |
0.045 x 1 x 386cm |
|
| 電源及耗電量 power and supply |
220V單相 single phase, 930W |
220V單相 single phase, 930W |
|
| 重量 weight |
NW=265kg |
|
GW=310kg |
NW=285kg |
|
GW=330kg |
|
| 裝箱呎碼 packing size |
164 x 172 x 80cm |
194 x 180 x 80cm |
|
| 定價 price |
HKD$14,000.-/ 台set |
HKD$15,000.-/ 台set |
|
| 附加電子調速器 adding speed controller |
+ HKD$3,000.-/套set |
|
|
|
|
| 歡迎致電查詢:
852-2927 6688 / QQ-2756-758-265 / e.mail:
ok@wealthtown.net |
|
| 或 瀏覽網址: www.wealthtown.net 九龍新蒲崗景褔街104號新時代工貿商業中心地下D舖 |
|
|
| Unit D,G/F.,New
Trend Centre, 104 King Fuk St.,San Po Kong, Kln.,H.K. |
|
| Tel:(852)29276688
Fax:(852)23515630 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
